Aluminum Honeycomb Wall Panel Buying Guide (2025 Updated)

1. Introduction: Why Aluminum Honeycomb Wall Panels Are Gaining Popularity

In recent years, aluminum honeycomb wall panels have become a preferred material in commercial buildings, hotels, airports, office towers, malls, and high-end residential spaces. Their lightweight structure, high durability, fire resistance, and premium aesthetics make them an excellent alternative to traditional wall materials.

This buying guide aims to help you understand everything you need to know before purchasing aluminum honeycomb panels, including specifications, styles, performance standards, installation methods, pricing, and how to identify a reliable supplier.

---

2. What Is an Aluminum Honeycomb Wall Panel?

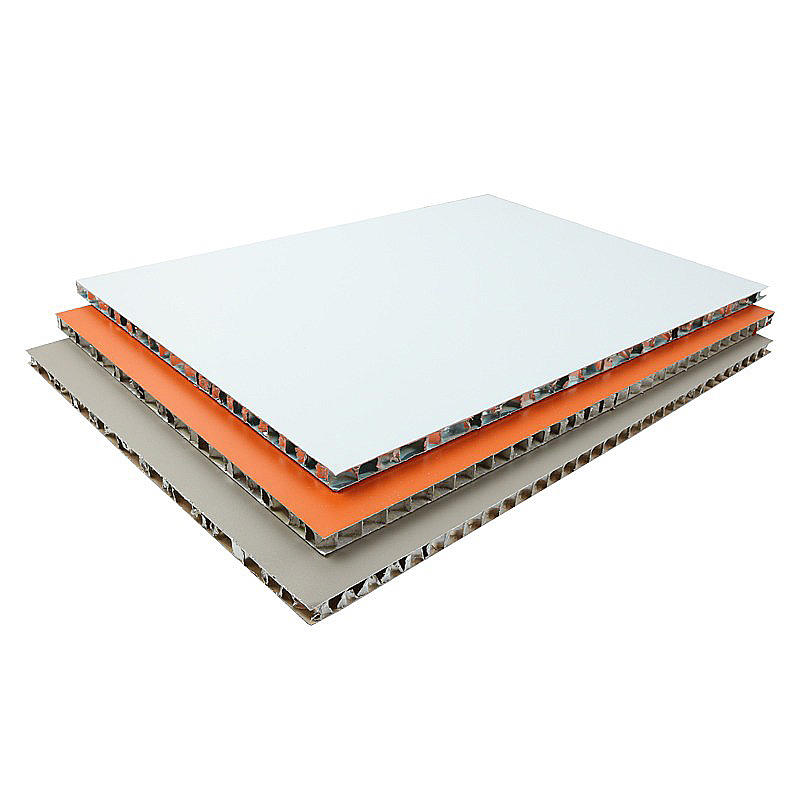

An aluminum honeycomb wall panel is a sandwich-structured composite panel composed of:

• Aluminum face panel

• Aluminum honeycomb core

• Aluminum or composite backing panel

The internal honeycomb structure mimics a beehive, providing exceptional strength-to-weight ratio and excellent rigidity.

Key Advantages

• Lightweight yet strong

• A2 fire resistance

• Excellent flatness

• Moisture-proof and corrosion-resistant

• Impact-resistant

• Suitable for large-size panels

• Easy installation and maintenance

---

3. Key Considerations Before Purchasing

3.1 Panel Size and Thickness

Common sizes include:

• 1220×2440mm (standard)

• 1220×3000/3600mm (large panels)

• Custom sizes/thickness are available

• Thickness options: 9mm,10mm, 12mm, 15mm, 20mm

Recommendations:

• Hotels/offices/commercial interiors: 9mm

• Airports/exhibition halls/public spaces: 9–18mm large panels

---

3.2 Surface Finish Options

The surface finish is crucial for achieving the desired aesthetic effect. Popular finishes include:

• PVDF coating (excellent outdoor durability)

• Powder coating

• Wood grain

• Stone grain

• Brushed aluminum

• Mirror aluminum

• Custom RAL colors

Tip:
For exterior or sun-exposed projects, always choose PVDF for long-term color stability.

---

3.3 Fire Rating

High-quality aluminum honeycomb wall panels should meet:

• A2 fire rating (EN13501-1)

This is required for hospitality, commercial, public, and high-traffic environments.

---

3.4 Application Scenarios

---

4. Installation Methods

4.1 Dry-Hanging System

Best for large-scale commercial or public projects.
Benefits:

• High structural strength

• Panels can be replaced individually

• Long lifespan

4.2 Adhesive Installation

Common for interior decoration.
Benefits:

• Faster installation

• Lower cost

• Smooth surface finish

---

5. How to Evaluate the Quality of Aluminum Honeycomb Panels

5.1 Panel Flatness

Quality panels should have exceptional flatness without visible warping.

5.2 Aluminum Thickness

Two critical parameters:

• Face aluminum: 0.6–1.0mm

• Backing panel: 0.5–0.8mm

Thicker aluminum improves durability and reduces deformation risk.

5.3 Honeycomb Core Density

Higher density = stronger panel.
The honeycomb should have precise hexagonal cells and no adhesive gaps.

5.4 Adhesive Quality

High-end panels use aerospace-grade adhesive, preventing:

• Delamination

• Warping

• Long-term failures

---

6. Pricing Guide: How Much Do Aluminum Honeycomb Panels Cost?

Pricing varies depending on aluminum thickness, panel thickness, surface finish, quantity, customization, and logistics.

Reference Price Range (for global market):

• Indoor standard panels: USD 18–28/m²

• PVDF outdoor panels: USD 30–45/m²

• Custom color or large-format: USD 32–55/m²

(Prices may fluctuate depending on exchange rate and raw material cost.)

---

7. How to Choose a Reliable Supplier

When comparing suppliers, focus on:

• Minimum 10+ years manufacturing experience

• A2 fire rating certification (EN13501-1)

• Stable production capacity and large-scale equipment

• Engineering case references

• Clear after-sales support

• Ability to provide installation guidance

---

8. Why Choose Mrs Alu as Your Aluminum Honeycomb Panel Supplier?

Mrs Alu is a professional manufacturer with 24 years of experience and a 40,000㎡ factory, supplying aluminum honeycomb wall panels to clients in:

• Philippines – 5-star office building

• Vietnam – corporate office renovation

• Dubai – hotel lobby project

• Saudi Arabia – business office building

• Malaysia – training center interior

• Indonesia – modern office building

We offer:

• Full series aluminum honeycomb wall panels

• OEM/ODM manufacturing

• Product Samples

• Professional engineering support

• Fast delivery to the Middle East, Southeast Asia, and global markets

---

9. FAQs

Q1: Can aluminum honeycomb panels be used outdoors?

Yes—choose PVDF coating and ≥15mm thickness.

Q2: Do they require a keel structure?

For large projects, yes.
For smaller interiors, adhesive installation may be sufficient.

Q3: Can the panels be customized?

Yes—size, thickness, color, and surface finish can all be customized.
